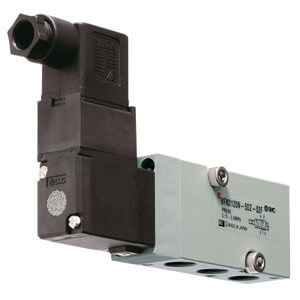

VFN2*20N, NAMUR Interface 5 Port Solenoid Valve | VFN2220N-5YO-02F-Q

NAMUR INTERFACE SOLENOID VALVE

VFN2120N-X36 is a hygienic solenoid valve with standard NAMUR interface. The valve PPS resin body provides excellent high temperature and chemical/corrosion resistance for use in wash down applications (IP67). The 5-pin M12 electrical connections is used for water proof sealing. With power consumption of only 0.5W, it is the most energy efficient valve with NAMUR interface in the market. It can also be used with AS-i bus system. VFN2120-X36 is available for 24 VDC or 110 VAC operation.

Features

• Can be directly installed on the industrial valve actuator that complies with NAMUR
• Solenoid options: Single or double
• Port threads: NPT 1/4, G 1/4
• Allowable voltage fluctuation: -15 to +10 % of rated voltage
• Many options for electrical entry: Grommet, Grommet terminal, Conduit terminal, DIN terminal.

Specifications

• Part number: VFN2220N-5YO-02F-Q
• Item number: 00163169
• Solenoid: 2 (Double Solenoid)
• Rated Voltage: 5 (24 VDC)
• Electrical Entry: YO [DIN Terminal w/o Connector (DIN 43650)]
• Light/Surge Voltage Suppressor: None
• Manual Override: Non-locking Push Style (Flush)
• Thread: F (G)
• CE Marked: Q
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Installation manual
• CE certificate
• CE certificate 2
• CE certificate 3
