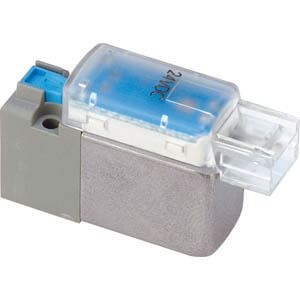

3 PORT SOLENOID VALVE
Customers looking for a compact, light - weight, high flow valve for piloting process valves or actuator applications, need search no longer. Following extensive research and development, world leaders SMC Pneumatics have launched their latest Series V100 - one of the most advanced solenoid valves in today's market. Designed with a revolutionary magnetic circuit and exterior cover, the V100´s machine free and environmentally friendly construction allows the coil to increase its force by 160%.In addition, energy savings are generated from the valve's progressive low power consumption. The Standard V100 uses only 0.35 w which is 76% less than comparable valves and the Low Power model uses only 0.1 w, reflecting; dramatic savings of up to 93% compared to existing products. Available in 3, 5, 6, 12 and 24 VDC options, Series V100 has a valve pitch of just 10mm and an overall height and length of 24.7mm and 27mm respectively and is probably one of the smallest pneumatic valves currently available. Weighing in at a mere 12 g and with flow rates of between 8.4; and 24 l/minute, it's the perfect solution when space, performance and component weight is critical.
Features
- Ultra Compact 3 Port Direct Acting Valves. Can be Manifold Mounted.N.O. or N.C. options. High Flow.
Specifications
- Part number: V124A-5LOU
- Item number: 00260352
- Type of Actuation: 2 (Normally Open)
- Rated Voltage: 5 (24 VDC)
- Electrical Entry: LO (Plug Connector (without Connector))
- Indicator Light and Surge Voltage Supressor: U (With Indicator Light and Surge Voltage Suppressor (Non-Polar))
- Manual Override: Non-Locking Push
- Port Size: Without Sub-Plate
- Lead time: 5 days
- Country of origin: JP
