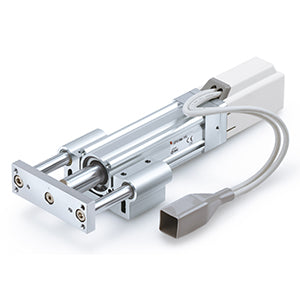

Battery-less Absolute Encoder Type - LEYG | LEYG25LDEA-50C-R5C6185
€1.362,43
VAT not included.
Ideal for high-precision, heavy-load environments, compatible with slide and ball-bushing bearings
Features
- Body size: 16, 25, 32 and 40 mm
- Stroke: 30 to 300 mm
- Speed control/Positioning: Max. 64 points
- Positioning and pushing control can be selected.
Specifications
- Part number: LEYG25LDEA-50C-R5C6185
- Article no.: 02957072
- Mounting: 8 (DIN Rail)
- Stroke: 50 mm
- Motor Mounting Position: D (In-line)
- Size: 25
- Bearing Type: L (Ball Bushing Bearing)
- Lead: A (Size 16: 10 mm, Size 25: 12 mm, Size 32/40: 16 mm)
- Motor Option: C (w/Motor Cover)
- Communication Plug Connector, I/O Cable: 5 (I/O Cable, 5m)
- Actuator Cable Type, Length: R5 (5m)
- Guide Option: Without Option
- Controller: C61 [Parallel Input (PNP)]
- Lead time: 28 days
- Country of origin: JP
