SMC · Linear Actuators

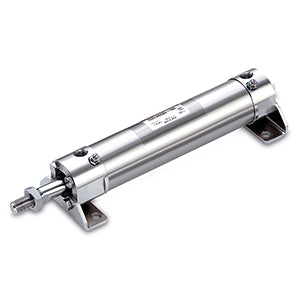

CDG5BA20TFSR-125
excl. VAT · €0,00 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | CDG5BA20TFSR-125 |
|---|---|
| Mounting | B (Basic Style) |
| Bore Size | 20 mm |
| Stroke | 125 |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Magnet | D (Built-in) |
| Rod End Options | None |
| Temperature Resistance | None |
| Style | A (Non-lube Air Cushion) |
| Seal Material | R (NBR) |
| Auto Switch | None |
| Thread | TF (G Ports) |
| Minimum order quantity | 0 |
- Bore sizes (mm): 10 ~ 100
- Strokes up to 400 mm
- Two types of seal material, NBR or FKM, can be selected to accommodate the application
- 5 different types of mounting.
Key features
- Double acting, single rod CG5-S cylinder
- All stainless steel external parts
- Special scraper prevents water from entering cylinder
- Bore sizes (mm): 20, 25, 32, 40, 50, 63, 80 and 100
- Auto switch capability
